TECHNICAL SPECIFICATIONS
Our state-of-the-art facility is more than just a stage; it's a place where magic happens. With a 471-seat theater, a Ballroom Gallery, and versatile event spaces, we provide the canvas upon which unforgettable moments are painted.
CONTACTS
Frank Dodd
Technical Director
(731) 986-2100, x622
fdodd@dixiepac.net
Stacy Sullins
Facility Services Technician
(731) 986-2100, x632
ssullins@dixiepac.net
Angela DeMaris
Executive Director
(731) 986-2100, x624
ademaris@dixiepac.net
Box Office | (731) 986-2100, x621 or press 0 | boxoffice@dixiepac.net

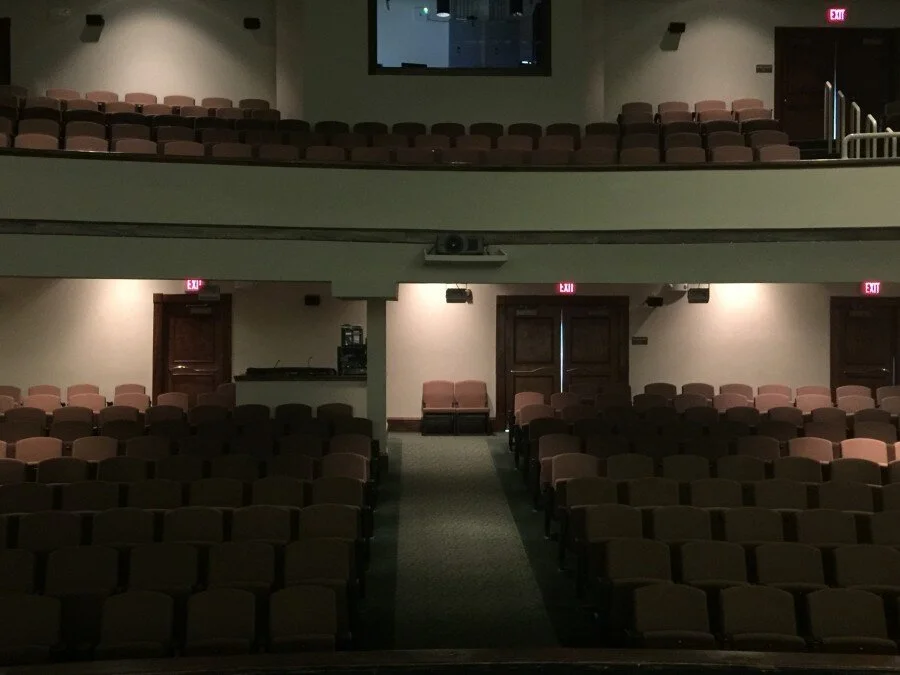

Inside of theatre with Orchestra Pit enclosed

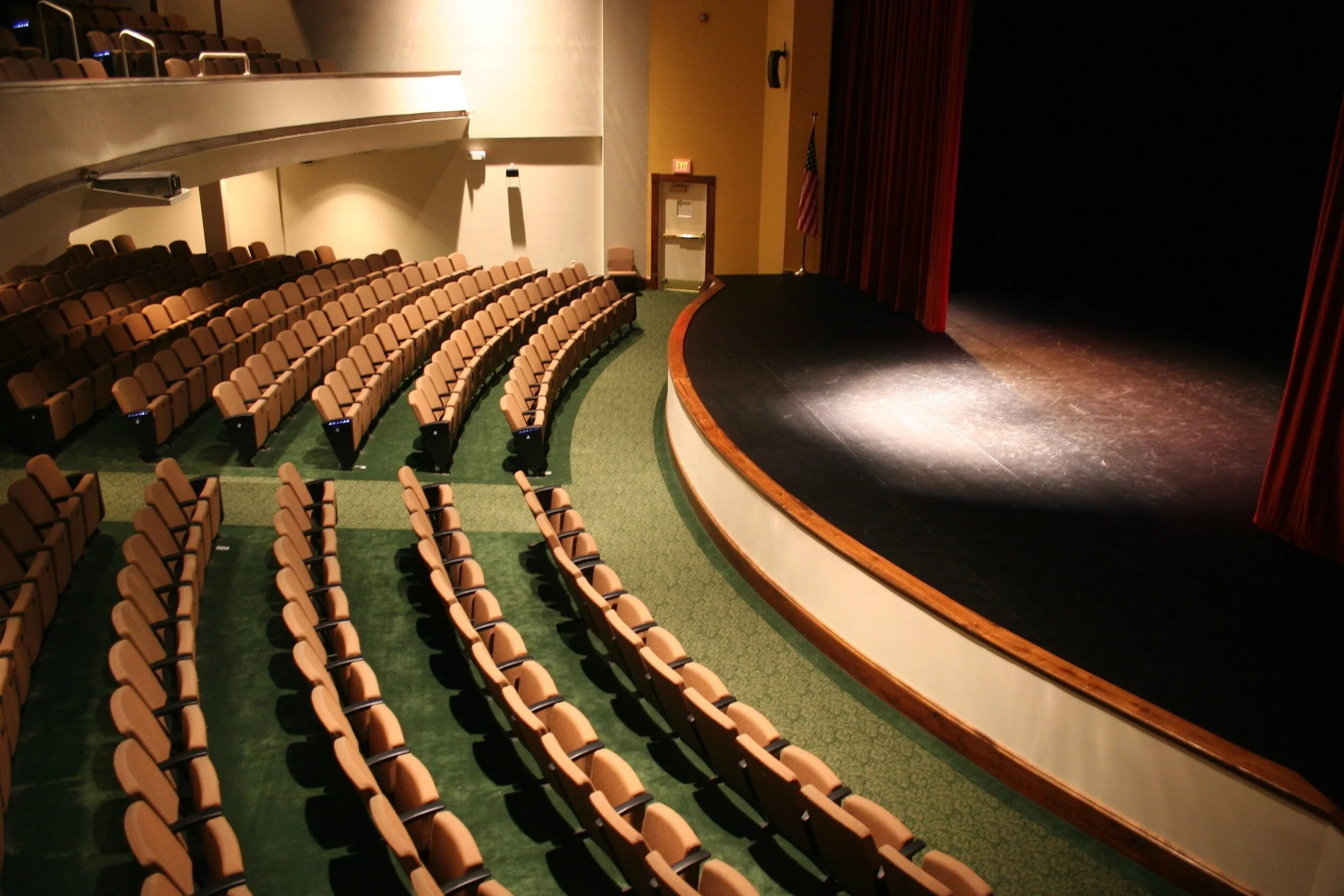

THEATER
Year Built: 2005
No. of Seats: Orchestra Level: 311, Balcony: 160, Total: 471
Orchestra Pit: See photo below
Stage: Painted Black Plywood raised over cement flooring
Ladder: 12’ Alvon Ladder
DIMENSIONS
Curtain Line to Back Wall of Auditorium: 51’
Curtain Line to Back Wall of Stage: 28’
Width of Stage from Wall to Wall: 64’
Wing Space: Stage Right – 28’ x 10’; Stage Left – 28’ x 8’
Back Black Curtain to Back Stage Wall: 5’-8”
Proscenium Opening: 18’-0” x 47’-10”
Grid: Grid Height from stage floor 36’-6”
1st Row of Seats to Edge of Pit: 4’-8”
Edge of Pit to Stage Lip: 11’-6”
Stage Lip to Curtain Line: 4'
Curtain Line to Back Wall: 28’-4”
Height of Stage Floor to Auditorium Floor: 3'
Curtain Line to Edge of Balcony (At Center): 32’

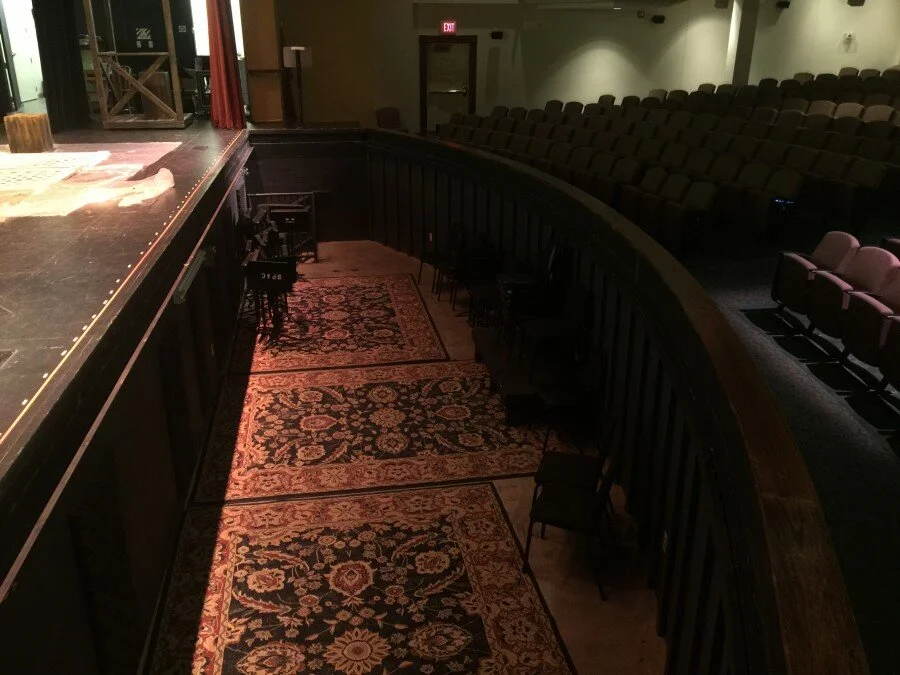

Inside of the Hal Holbrook Theatre with Orchestra Pit open
STAGE RIGGING
Working Height of Grid: Under Hung
Number of Lines: 19
Lines Free: 5
Fly System: Hemp – Counterweight
Capacity of each line set after balancing pipe weight: 1750lbs.
Distance from front curtain to first set: 1’-4”
To Last Set: 20’-4”
Distance from last set to back wall: 8’
Space between sets: 8” O.C.
Length of Pipes: 52’
Diameter of Pipes: 2”

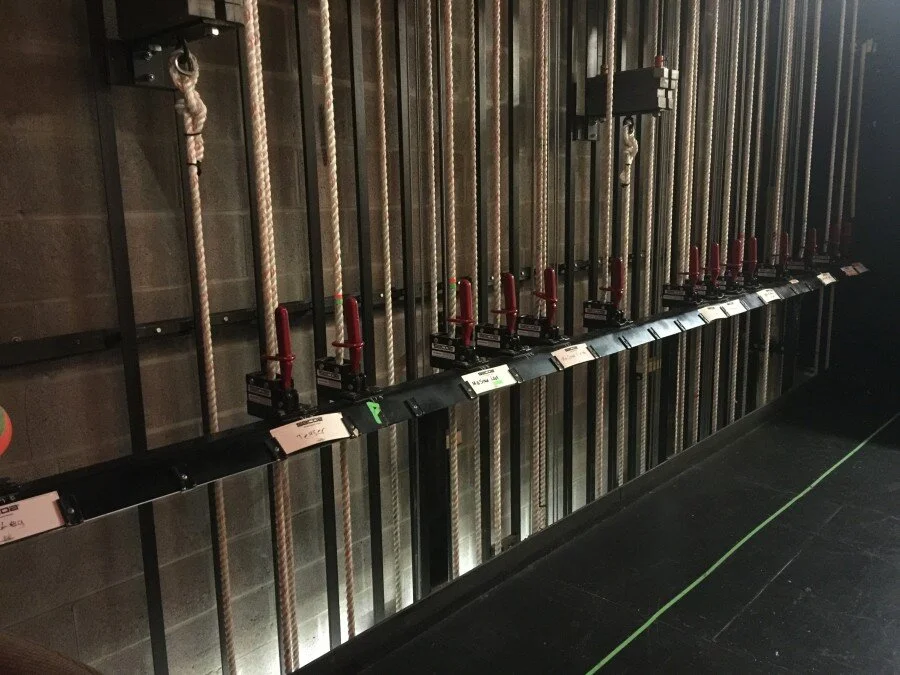

Locking Rail Location: Stage Right
Height off Stage Floor: 2’-6”
ELECTRICAL POWER
2 - 400 Amp Disconnect
15 Circuit Lex Power Distro
LINE SET SCHEDULE
No./Measurement/Product Notes 1…..0’………….Teaser 2 ….8”…….… ..Full Main Curtain Traveler or Up/Down 3……2’………….1st Electric 4……3’4”…….....Short Lineset Does not travel all the way out 5……4’8”…….....Legs 6……6’8”…….....Teaser 7……7’4” 8……8’8"………..Legs 9……9’4” 10…10’…………2nd Electric 11…11’4”………Short Lineset Does not travel all the way out 12…13’4”………Teaser 13…14’………...Legs 14…14'8 15…15’4……….3rd Electric Loaded with CYC lighting 16…16’8” 17…18’……….. Legs 18…19’4”……...Black Full Drop Traveler or Up/Down 19…20’………..CYC
SOFT GOODS
1 – House Curtain – Colonial Brick
All Soft Goods – Black Velour with Pleats and Fullness
All on Traveler Tracks
2 – Black Borders 6’h x 52’w
4 – Black Legs 19’h x 7’w
1 – Cyclorama – Natural Muslin 21’h x 52’w
Distance of Full-Stage Black from Curtain Line: 16’-6”
LIGHTING
18 - 40° Ellipsoidal Spotlight
9 – 16” Scoop (Work Lights)
47 – Star Par
8 – Three Cell Far Cyc
6 - Chauvet Rogue R2 Washes
6 - Chauvet Rogue R2X Spots
ETC Ion Lighting Console with fader wing
77 Modules Duel Dimmers
All Altman Fixtures
2- 3 Phase/4 Wire disconnects
6 - 10° Ellipsoidal Spotlight
14 - 30° Ellipsoidal Spotlight

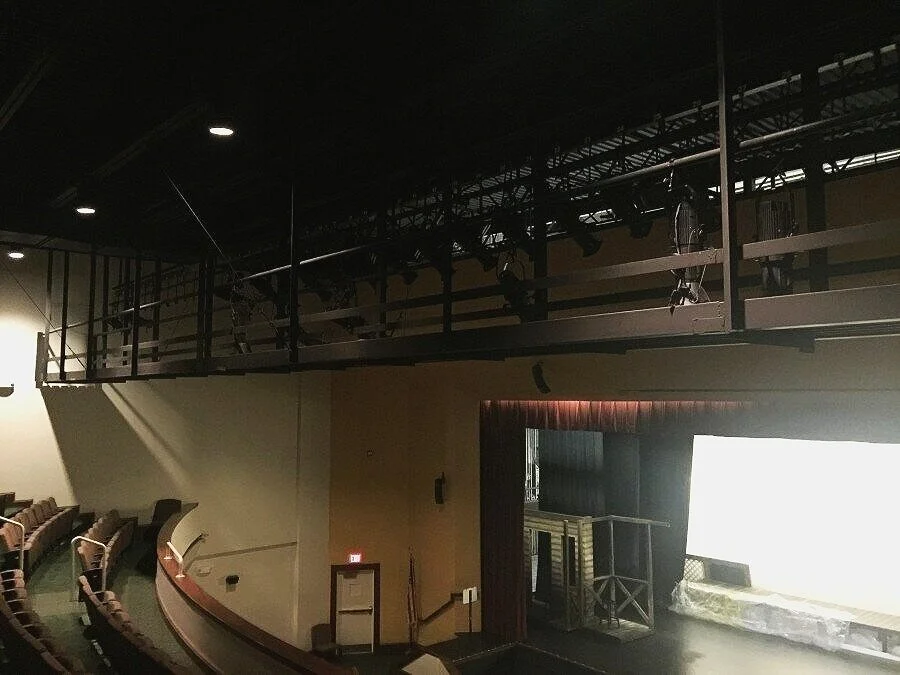

The Catwalk is located above balcony seating
CATWALK
Distance from Curtain Line: 29’
Height from Stage: 24’
Total Throw to Curtain Line (At Center): 32’
Vertical Angle to Stage: 45°
Number of Circuits: 43
SOUND

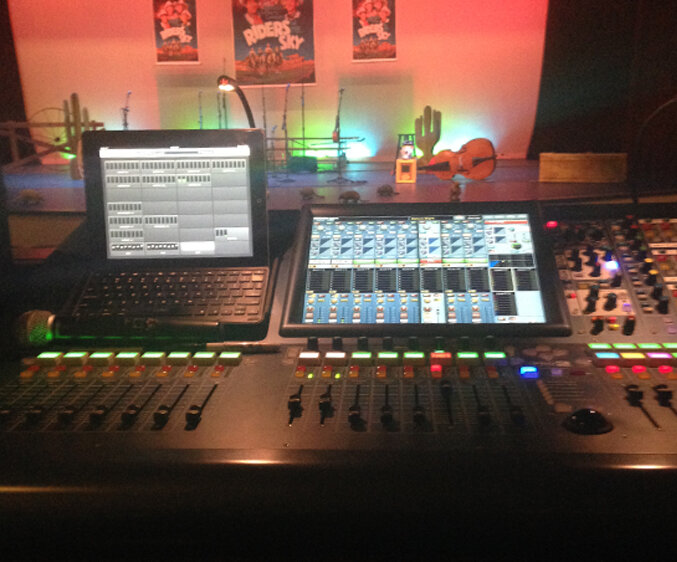

Sound Control Board located House Center at back of Orchestra Level
Midas Pro 2 Console with CAT 5, Midas DL251 48x16
Denon CD
House System for Hearing-Impaired
Crown Power CT Series Amplifier
Bose House Speakers
EV and Worx Stage Monitors with QSC and Crown power
Various Shure and Audix Wireless and Wired mics
ClearCom for all stage communications
Supplemental PA for Concerts typically consists of Meyer and Midas designed for the Venue and Show.
VIDEO SYSTEM EQUIPMENT
5.2K lumen.800:1 cont. Projector
Power zoom & focus 4.90” x 6.40”
180” Tens. Cosmo Electrol Screen with Remote Control
DVD & Hifi VHS Deck
100’ RGBHV Super High Resolution Cable
12’ & 3’ High Resolution VGA Cable
Interior of one of three off-stage dressing rooms
STAR DRESSING ROOMS WITH STAGE ACCESS
Available upon request: Iron, Ironing Board, Garment Steamer, and multiple other amenities
1. Dressing Room is 7’ x 11’, bathroom is 3’x5’
Equipped with: toilet, sink, shower with seat, full length mirror, various make-up mirrors, two outlets, coat rack with hangers, trash can, table, chairs, tri-fold towels, intercom
Amenities include: bottled water, 2 towels, 2 face towels, shampoo, conditioner, and body soap.
2. Dressing Room is 7’ x 11’, bathroom is 3’ x 5’
Equipped with: Same as Above except: a refrigerator and the addition of a phone and modem line
3. Dressing Room is 7’ x 11’, bathroom is 4.5’ x 8’
Equipped with: Same as Above except: shower has handicapped seat, and thermostat that controls all three Star Dressing Rooms
Interior of one of two ensemble dressing rooms on lower level
CHORUS ROOMS
Located on Lower Level
Each room is 23’ x 20’ with Men’s & Women’s Bathrooms
Equipped with lights, mirrors, tables, chairs, electrical outlets

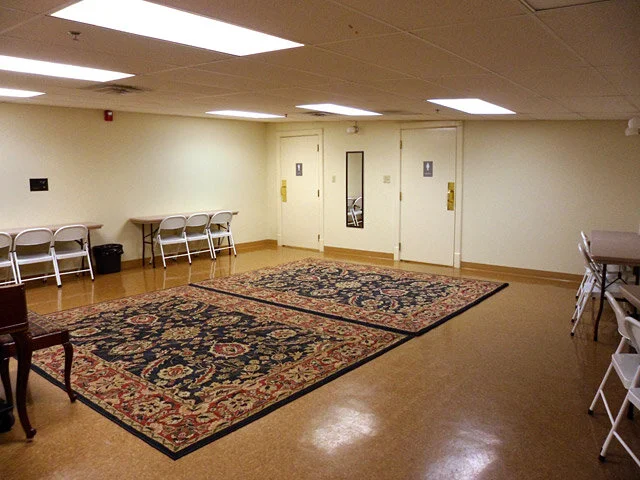

Green Room
REHEARSAL / GREEN ROOM
26’ x 40’ Rehearsal/Green Room on Lower Level
Rehearsal / Dance Room

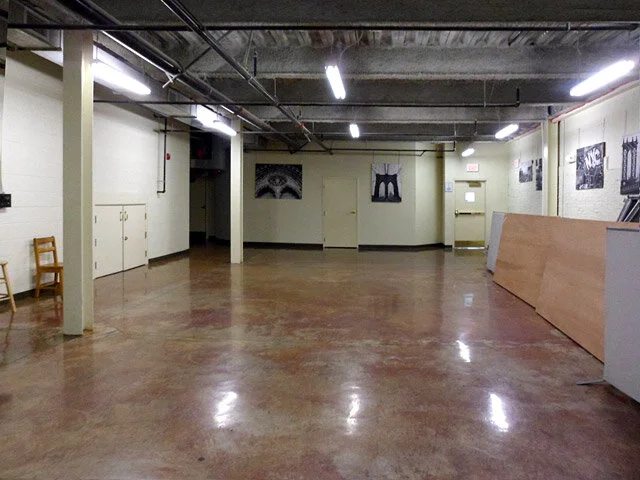

REHEARSAL / DANCE ROOM
21.5’ x 40’ Rehearsal/Dance Room on Lower Level with Mirrors and Barres

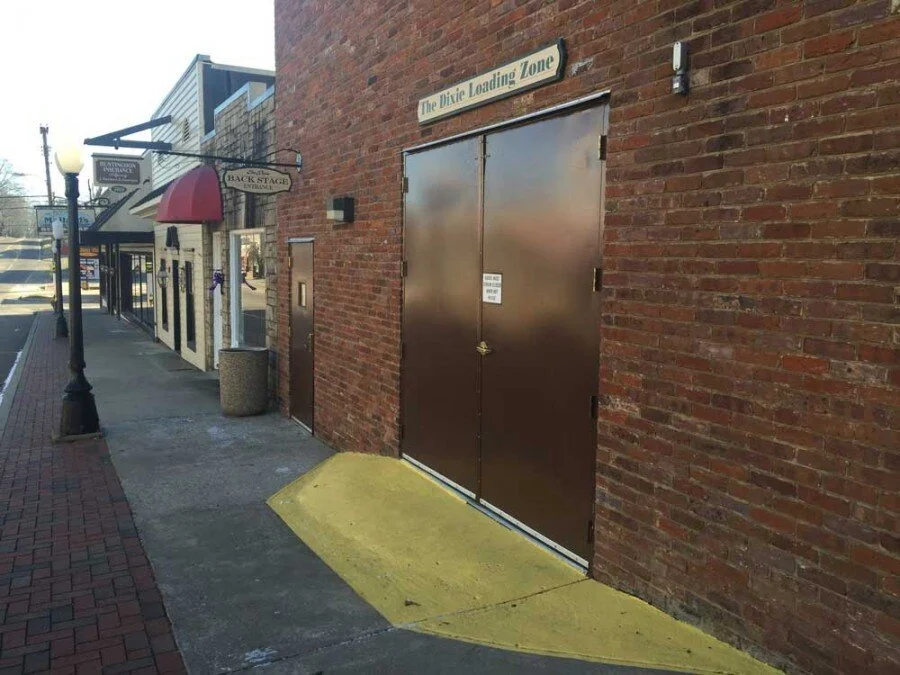

Loading Zone - located on Main Street; North Wall of The Dixie
LOADING FACILITIES
Located on North Wall of building on Main Street between Court Square and 2nd Ave
Loading Door Size: 8’x8’
Elevator Lift on Street Level, Stage Level, and Lower Level
